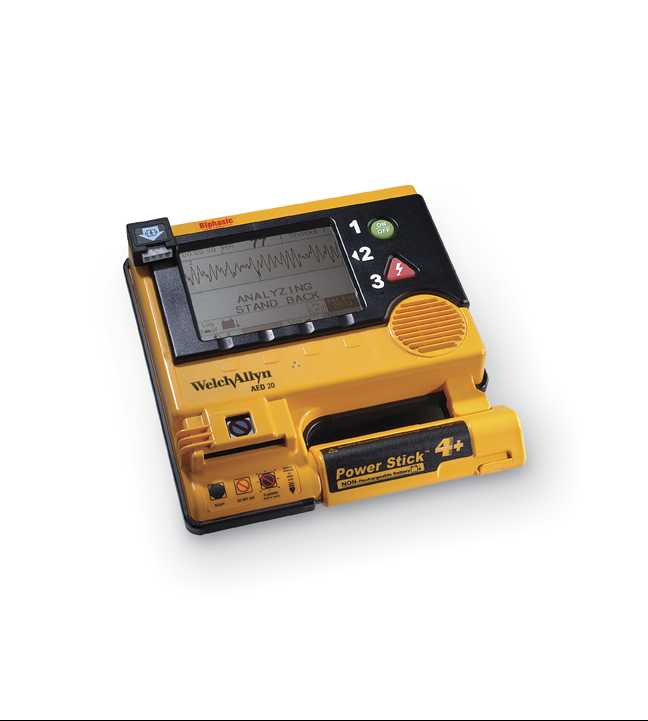

The Welch Allyn AED 20 is
as rugged and versatile as they come.
The unit demonstrates the latest advances in defibrillation
technology and is designed to accommodate the needs of both basic and advanced
life support personnel. Simple 1-2-3 operation, audible and visual prompts and a
large high resolution, diagnostic quality display makes this unit easy-to-use.
The AED 20 can be upgraded to include ECG Monitoring using traditional
snap-based electrodes and manual defibrillator capabilities. Three devices in
one compact package.
• Biphasic technology
• Very easy to use
• Large, high-resolution, diagnostic quality backlit display
• Lightweight (<5 lbs.)
• Print event data and ECG directly to most commercial printers
• Large internal memory
• Field upgradeable
• Defibrillation pad & datacard compatibility
Optional Features:
• Passcode protected manual defibrillation (2 - 360 Joule Selection)
• ECG waveform on display and single ch. monitoring
The most innovative addition to this AED is its data exchange capabilities. When
trained medical personnel arrive, they can transfer the data from the Welch
Allyn AED 20 to the Welch Allyn PIC 40 or PIC 50 via a datacard, capturing
continuous patient data at every level of care.
STANDARD FEATURES
• Semi-Automatic - operator presses shock button
• Auto analysis, auto joule selection and auto charge activation
• Biphasic technology
• Energy Select: 200, 300, 360J or user configurable among the following energy
options: 150, 200, 300, 360J
• 2 button operation
• Largest, high resolution, backlit display
• Voice and screen prompts
• Battery fuel gauge displayed on screen
• Protocol configurable via supervisory passcode
• Readiness indicator (weekly and monthly self tests)
• Weight: 4.5 pounds Size: 8" x 9" x 3"
• Defibrillation Pad compatible with all WA defibrillators
• Compatible with most brands of popular defibrillation pads
• Rugged carry case options
POWER
• Non-rechargeable, Lithium ion battery with 5 years of standby performance
REPORTING OPTIONS
• Datacard download via optional Windows PC software
Monitor/Defibrillator
• Print patient information directly to most commercial available printers |
