Rack and pinion drive

Rigid and compact aluminum extrusion rail

Support posts anchored to stair treads
(not mounted on wall)

300 lb (136 kg) capacity

"Almond beige" seat and rail

Adjustable width between armrests from
18" to 21" wide (457 to 533 mm)

1/2 hp, 24 VDC motor

Battery-powered 24-volt motor

Pair of 12-volt, maintenance-free batteries

Charger plugged in at top or bottom landing
110 VAC, 60 Hz outlet

Electronic controller with soft start and
soft stop

Fused control circuit

Wireless infrared call-send controls at
both landings

Continuous pressure buttons

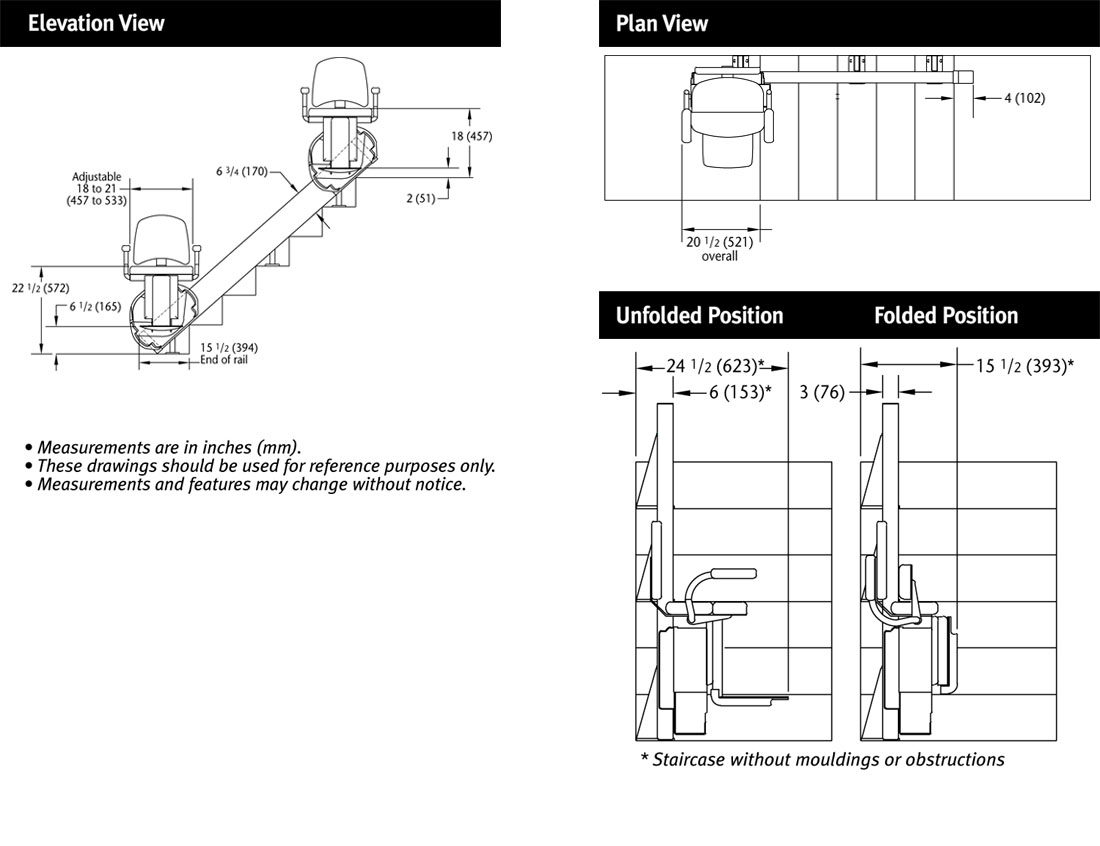

Aluminum rail on 6" (152 mm) from wall

3" (76 mm) rail overhang at top landing with
seat height of 18" (457 mm)

22 1/2" (572 mm) seat height at bottom landing

Adjustable seat height

Unit is completely reversible on site for
quick installation

Lateral adjustment on footrest for uneven treads

Foldable footrest, seat and padded armrests

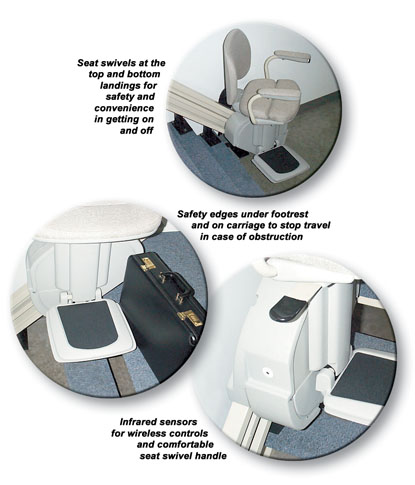

Seat that swivels and locks in 45° and 90°
positions both directions

Seatbelt and seat swivel switch

ABS plastic covers

Obstacle sensors under footrest and on carriage
