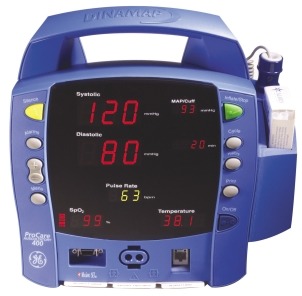

GE DINAMAP ProCare 420 Monitor, NIBP, Heart Rate, IVAC TurboTemp, Nellcor OxiMax SpO2 & Printer


GE DINAMAP ProCare 420 Monitor

PRICE:$3,900.00



Market-Leading Technologies: Designed specifically for health care professionals who require hospital-grade quality in non-hospital settings, the DINAMAP ProCare Series offers proven world-class technology in every parameter. With the DINAMAP ProCare Series, you can take BP measurements that are fast, accurate and comfortable. Get reliable temperature -readings in seconds. And get oxygen saturation readings with your choice of two leading-edge SpO2 technologies. Depending on your needs of data storage, you can now choose between the printer or printerless version of the ProCare. Which means you spend less time checking vitals and more time on actual patient care.

  • User-Friendly Design: Its lightweight at 2,5 Kg, and its large red numbers ensure a clear bright display that is visible from around the room. Not only that, the DINAMAP ProCare is easy to carry or wheel from place to place or even mount on a wall as needed. Best of all, you'll find it simple to operate, with no extensive training required. Don’t hesitate to use the help cards, which are underneath the monitor in case of doubt!

  • DINAMAP NIBP: With more than 25 years and over 350,000 devices, DINAMAP has earned a reputation as the gold standard in non-invasive blood pressure measurement. And the DINAMAP ProCare Series once again proves why. With its unique patented algorithm and artifact rejection system, the DINAMAP ProCare ensures exceptionally accurate BP readings even in hypertensive and hypotensive cases regardless of patient movement. This Dinamap algorithm is adapted for every typology and every category of patients from the neonates to the adult.

  • Alaris Turbo*Temp™: An electronic thermometry system by Alaris Medical Systems, Turbo*Temp is not only extremely accurate, but also very fast. In fact, oral (or rectal) predictive temperatures are provided in approximately 7 seconds, saving health care professionals valuable time. This temperature can also be used with the monitoring mode for axillary’s monitoring use for example.

  • SpO2 Accuracy even with motions and low perfusion: Nellcor OxiMax™ technology. Use SatSeconds™ technique to prevent you and your patients from the alarms nuisance by controlling the time that the SpO2 level may fall outside the alarm. Test also the low perfusion mode to be more accurate in difficult situations.

  • Connectivity: ProCare has now the ability to transfer its datas via its RS232. Connect the monitor to your laptop (need a software) or to the Chant server in order to collect the datas (research, HL7 connection…). ProCare can also been connected either to an Obstetrical Corometrics monitor or to an ApexPro GE telemetry V2.

  • Built to Last: As with all DINAMAP monitors, the ProCare has been engineered to provide years of trouble-free service. In addition to incorporating the highest-quality materials for "hospital grade" durability, the monitors are designed to be low maintenance and easy to repair.

    Features ProCare 120 ProCare220 ProCare320 ProCare420
    DINAMAP NIBP Yes Yes Yes Yes
    Pulse Rate Yes Yes Yes Yes
    IVAC® Turbo•Temp™   Yes   Yes
    Nellcor OxiMax™ SpO2     Yes Yes
    Trends Yes Yes Yes Yes
    Printer Yes Yes Yes Yes
    RS232 Yes Yes Yes Yes

    Specifications:

    • Dimensions: 9.7”x10”x5.3” (HxWxD)

    • Weight: 5.68 lb

    • Battery: 6 volt, 3.3 amp-hours

      • Minimum operation time: 5 hrs (5 min cycle with adult cuff at 25°C, SpO2 active at 60 bpm, Temp in monitor mode) from full charge.

      • Time for full recharge: Approx. 5 hrs from full discharge when the Monitor is switched off and 8 hrs when the Monitor is switched on.

    • DINAMAP NIBP (ProCare 120, 220, 320, and 420)

      • Blood Pressure Accuracy Meets or exceeds ANSI/AAMI standard SP-10

      • Patient category: Adult or neonates mode

      • Cuff Pressure Range: 10 to 290 mmHg (adult/ped); 10 to 140 mmHg (neonate)

      • Target cuff inflation range: between 100-250mm Hg (adults); 100-140 mm Hg (neonate) per 5mm Hg step

      • Overpressure Cutoff: 330 mmHg (adult/ped); 165 mmHg (neonate)

      • Pulse Rate Range: 30 to 200 beats/min (adult/ped); 30 to 220 beats/min (neonate)

      • Pulse Rate Accuracy: ± 3.5%

      • Mode settings: Manual, auto or stat mode

      • Auto mode: Stat, 1, 2, 3, 4, 5, 10, 15, 20, 30, 60, 90, 120 min

    • IVAC® Turbo•Temp™Temperature (ProCare 220 & ProCare 420)

      • Scale: °Fahrenheit (F); °Celsius (C)

      • Range: Predictive mode Max: 41.1° C; 106.0° F; Min: 35.6° C; 96.0° F

      • Monitor mode Max: 41.1° C; 106.0° F; Min: 26.7° C; 80.0° F

      • Accuracy: Monitor mode accuracy ± 0.1° C; ± 0.2° F

    • Nellcor OxiMax™ SpO2 (ProCare 320 & ProCare 420)

      • Measurement Range: SpO2 1 to 100%

      • Pulse Rate 20 to 250 beats/min

      • SpO2 signs: SpO2 % value and SpO2 pulse indicator (red LED bar flashes)

      • Accuracy and Motion Tolerance

        • Saturation Without Motion: Adults 70 to 100% ±2 digits; Neonate 70 to 100% ±3 digits

        • Saturation With Motion: Adults/Neo 70 to 100% ±3 digits Low Perfusion 70 to 100% ±2 digits

        • Pulse Rate Range Without Motion: 20 to 250 beats/min ±3 digits

        • Pulse Rate Range With Motion: normal physiologic range 55 to 125 beats/min ±5 digits Low Perfusion 20 to 250 beats/min ±3 digits

      • Alarms

        • Audible Indicator Pitch changes continuously with saturation: volume from 0 to 9

        • Sensor Connect/Disconnect from patient detection within 15 s Sensor Connect/Disconnect from monitor detection within 5 s

        • Loss of Pulse Monitor will detect loss of pulse from patient and enter no signal state within 10 s

    • History

      • Storage: 25 entries

      • When full, the oldest entry is removed so the most recent entry can be stored. Entries are automatically removed when they become older than 24 hours

      • Entries can be Systolic, Diastolic, MAP, Pulse Rate, SpO2, Temperature values

    • Alarms

      • An alarm can generate an audible indication, visual indication, alarm message code, and electronic record in the history. The audible indicator is based on two sounds depending on the priority of the alarm (medium or high) ProCare provides 3 categories of alarms:

      • Patient-related: Limit and Parameter status alarms

      • System-related: Printer, battery and memory alarms

      • System failures

      • Alarm suspension: 2 min

      • Volume adjustment from 1 to 10

      • Alarm signs: Single silence button and silence icon

    • Printer (ProCare 120, 220, 320, and 420)

      • Two types of printouts: Printout of the currently displayed values or Printout of all entries stored in the history mode
