Product

Item #

Information

752NM

752IM

752CM

752XM

752TM

750W

750NW

750IW

750CW

750XW

750TW

The 752M Mobile Aneroid includes:

• Height adjustable Spider-LegTM caster stand with range of 40” to 54” (from bottom of base to top of unit)
• Integral ABS cuff storage compartment
• Manometer angled back 15° for easy viewing
  *Some assembly required
• Contemporary Euro-style ivory casing compliments any decor
• Complete with all necessary hardware and assembly instructions
• Available in Wall or Mobile configurations
• Inspected and packaged in the U.S.A. from foreign components

752M Adult Sale Price $209.43  $150.49

752NM Newborn Sale Price $209.43  $150.49

752IM Infant Sale Price $209.43  $150.49

752CM Child Sale Price $209.43  $150.49

752XM Lrg. Adult Sale Price $217.48  $156.27

752TM Thigh Sale Price $224.01  $160.96


The 750W Wall Aneroid includes:
• Wall bracket that swivels through 110° rotation for easy viewing with integral cuff storage.

750W Adult Sale Price $107.81  $77.47

750NW Newborn Sale Price $107.81  $77.47

750IW Infant Sale Price $107.81  $77.47

750CW Child $107.81  $77.47

750XW Lrg. Adult Sale Price $115.86  $83.25

750TW Thigh Sale Price $122.39  $87.94

922N

922I

922C

922X

922T

A traditional desktop mercury sphygmomanometer
that follows in the quality tradition of ADC aneroids.

  The 922 series features:
• Rugged die cast aluminum housing with textured black baked enamel finish
• Fold-down cover with spring lock mechanism
• Graduated unbreakable plastic cartridge tube features 4.00mm inside bore for unrestricted, friction-free mercury flow
• High visibility red graduations
• Filter system keeps mercury clean for reliable performance
• Locking reservoir secures mercury during storage, transport, or maintenance
• AdcuffTM black nylon cuff with ADC’s proprietary Size GuideTM marking system   prevents mis-cuffing
• Dip molded latex inflation bladder withstands heavy use
• Latex inflation bulb fitted with filter screen end valve reduces dust build-up
• AdflowTM chrome-plated brass air release valve
• Lifetime warranty on cartridge tube

922 Adult Sale Price $70.09  $50.36

922N Newborn Sale Price $70.09  $50.36

922I Infant Sale Price $70.09  $50.36

922C Child $70.09  $50.36

922X Lrg. Adult Sale Price $78.14  $56.14

922T Thigh Sale Price $84.67  $60.84

932N

932I

932C

932X

932T

Contemporary desktop instrument designed from the same
platform as our wall and mobile mercurial manometers.

  The 932 series features:
• Rugged housing constructed from a combination of virtually indestructible ABS and die cast aluminum
• Contemporary design with weighted base and integral wire inflation
 system basket
• Graduated unbreakable plastic cartridge tube features a massive 5.00mm inside bore for unrestricted, friction-free mercury flow
• White oversized numerals on contrasting black scale combined with high visibility red graduations for easy reading
• EZ-Tube™ system allows safe, simplified maintenance of the cartridge tube or top cap filters
• Additional safety provided by the locking reservoir, which secures mercury for transport or maintenance
• Adcuff™ black nylon cuff with Size Guide™ marking system prevents mis-cuffing
• Dip molded latex inflation bladder and bulb
• Adflow™ chrome-plated brass air release and end valve with filter screen protection
• Assembled, inspected, and packaged in the U.S.A. from foreign components
• Lifetime warranty on cartridge tube.

932 Adult Sale Price $85.08  $61.14

932N Newborn Sale Price $85.08  $61.14

932I Infant Sale Price $85.08  $61.14

932C Child $85.08  $61.14

932X Lrg. Adult Sale Price $93.13  $66.92

932T Thigh Sale Price $99.66  $71.61

952BN

952BI

952BC

952BX

952BT

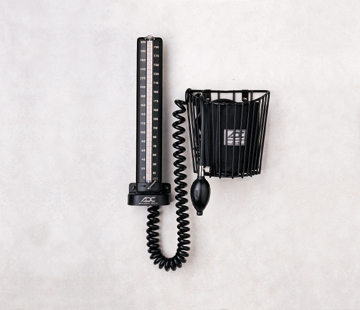

A contemporary swivel-mount
wall mercurial sphygmomanometer
that meets the quality and safety needs of the institutional user.

  The 952B features:
• Rugged housing constructed of a combination of virtually indestructible ABS and die cast aluminum
• Graduated unbreakable plastic cartridge tube features a massive 5.00mm inside bore for unrestricted, friction-free mercury flow
• White oversized numerals on contrasting black scale combined with high visibility red graduations for easy reading
• EZ-Tube™ system allows safe, simplified maintenance of the cartridge tube or top cap filters
• Additional safety provided by the locking reservoir
• Wall bracket swivels through 110° arc for enhanced visibility
• Adcuff™ black nylon cuff with ADC’s proprietary Size Guide™   marking system prevents mis-cuffing
• Dip molded latex inflation bladder and bulb
• Adflow™ chrome-plated brass air release and end valve with filter screen protection
• Complete with vinyl coated wire cuff basket, 8 foot length (when extended) of coiled latex tubing, all mounting hardware, and comprehensive owner’s manual
• Assembled, inspected, and packaged in the U.S.A. from foreign components
• Lifetime warranty on cartridge tube

952B Adult Sale Price $113.70  $81.70

952BN Newborn Sale Price $113.70  $81.70

952BI Infant Sale Price$113.70  $81.70

952BC Child $113.70  $81.70

952BX Lrg. Adult Sale Price $121.75  $87.49

952BT Thigh Sale Price $128.28  $92.17

972N

972I

972C

972X

972T

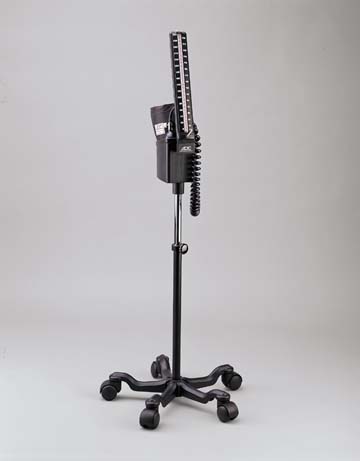

DIAGNOSTIXTM 972 SERIES

A mobile sphygmomanometer that combines
unsurpassed institutional reliability with trouble-free service.

  The 972 series features:
• Rugged housing constructed of a combination of virtually indestructible ABS and die cast aluminum
• Graduated unbreakable plastic cartridge tube features a massive 5.00mm   inside bore for unrestricted, friction-free mercury flow
• White oversized numerals on contrasting black scale combined with high visibility red graduations for easy reading
• EZ-Tube™ system allows safe, simplified maintenance of the cartridge tube or top cap filters
• Additional safety provided by the locking reservoir, which secures mercury for transport or maintenance
• Spider-Leg™, 5 leg weighted base for stability
• 2" casters for easy mobility
• Integral ABS cuff storage compartment in main unit
• Height adjustable stand from 40" to 54" (from bottom of base to top of unit)
• Scale angled back 15° for improved readability
• Adcuff™ black nylon cuff with ADC’s proprietary Size Guide™ marking system prevents mis-cuffing
• Dip molded latex inflation bladder and bulb
• Adflow™ chrome-plated brass air release and end valves with filter screen protection
• Complete with 8 foot length (when extended) of coiled latex tubing
• Includes all assembly tools and hardware
• Inspected and packaged in the U.S.A. from foreign components
• Lifetime warranty on cartridge tube
  Some Assembly Required

972 Adult Sale Price $208.41  $149.76

972N Newborn Sale Price $208.41  $149.76

972I Infant Sale Price$208.41  $149.76

972C Child $208.41  $149.76

972X Lrg. Adult Sale Price $216.46  $155.54

972T Thigh Sale Price $222.99  $160.22
