B.07 Stair Lift

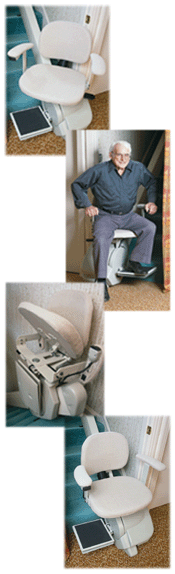

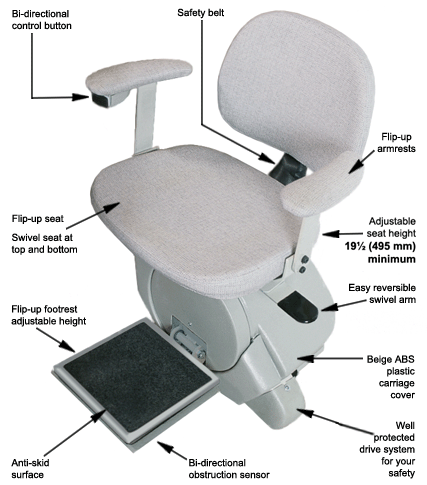

B.07 stair lift standard equipment

45º and 90º swivel seat at top and bottom landings

Adjustable seat height

Adjustable footrest height

Swivel seat handle (reversible side)

120 VAC operating system with traveling cable

Seat belt with positive locking mechanism

Flip-up padded armrests

Constant pressure control switch on armrest
(reversible side)

Wall mounted call / send controls

Obstruction sensors

Unit is completely reversible on site for quick installation

Safety brake on carriage

B.07 optional equipment:

Outdoor package with vinyl cover and keylocks

Commercial package

24 VDC battery-powered system with constant
battery charge along the rail
and wireless call / send controls
400 lb (181 kg) capacity upgrade

Specifications:

Application	Indoor, outdoor, straight run stairway
Maximum Travel	32 ft (9,754 mm)
Speed	18 fpm (0,09 m/s) approx.
Angle of incline	25º to 45º
Rated load	300 lbs (136 kg)
Drive system	Roller chain / sprocket
Motor	½ hp, 110 VDC or 24 VDC. Runs on standard household current 120VAC
Standard color	Beige carriage and upholstery, grey or beige rail finish
