Welch Allyn®
AED 10™
Model
970302E
complete resuscitation solution – including early defibrillation, basic
emergency devices, multi-parameter monitors, and patient management systems –
capturing critical data at every level of care.

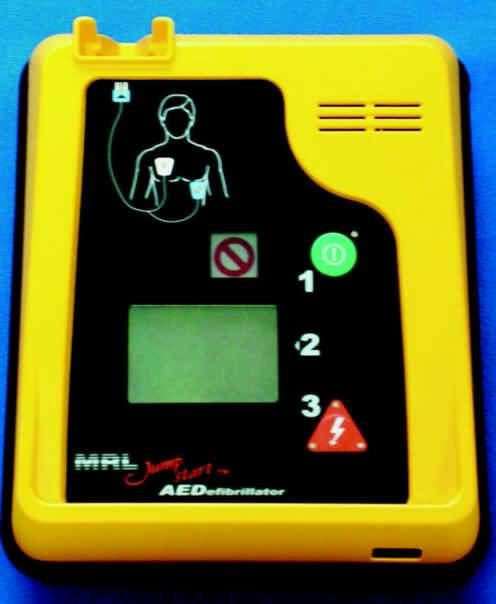

When it comes to simplicity and compact design, the LifeQuest JumpStart
Automated External Defibrillator (AED) from MRL is ready for rescue. With input
from AED users at every level of skill, the LifeQuest JumpStart was designed for
simple operation and quick deployment by the minimally trained or infrequent
user.
Simply Stated... the LifeQuest JumpStart Is Very Simple To Use. Using the
proven "1-2-3" rescue approach, a standard developed by MRL in 1972 and used the
world over, the JumpStart is ideal for the infrequent and basic rescuer. By
following text messages together with voice prompts, virtually anyone can
operate this lifesaving device. The JumpStart automatically determines if a
lifesaving shock is required and protects against inappropriate delivery of a
shock. Focused on simplicity, the JumpStart promotes a quick, no-hesitation
response.
The Lightest and Smallest In Its Class. At just 3.5 pounds (including the
extended life, heavy-duty battery) the LifeQuest JumpStart AED is the smallest
and lightest portable defibrillator in its class. The compact and lightweight
design promotes quick and immediate deployment by virtually any rescuer -
wherever Sudden Cardiac Arrest occurs.
Dependable and rescue-ready. AEDs are now being placed in a wide range of
settings... and the LifeQuest JumpStart is leading the way by helping rescuers
respond quickly to the emergency. This compact AED is available with a durable
carrying case and can be stored in a compact wall cabinet (optional).
High-performance, long-life, maintenance-free lithium batteries power the
JumpStart - a battery technology specifically designed for applications where
safety, reliability and long shelf life are of the utmost importance. And, the
JumpStart is backed by a five year limited warranty for performance you can
count on.
One Complete Solution. Like all other LifeQuest AED's, the JumpStart can
be part of the complete MRL AED Solutions program which includes planning,
physician oversight, legal indemnification, site survey, training, re-training,
maintenance and data management.
LifeQuest AEDs are the result of MRL's 35 years of defibrillation experience -
making sophisticated technologies "as simple as "1-2-3". Today, LifeQuest AED's
are used in many of today's top companies and facilities who share MRL's goal -
providing Sudden Cardiac Arrest victims with a second chance at life. Saving a
life is as simple as 1-2-3.
Technical Specifications
DEFIBRILLATOR
Output: Welch Allyn Orbital™ Biphasic Truncated exponential.
Energy Select: 200, 300, 360J or user configurable among the energy options:
150, 200, 300, 360
Charge Time: Less than 5 seconds to 150J, less than 15 seconds to 360J.
Analysis Time: 4-16 sec.
Audible Prompts: 18 audible prompts.
Visual Prompts: 20 text screen prompts.
Controls: Four buttons - On/Off, Shock, and 2 software configurable buttons.
Accuracy: ±10% or 1J (whichever is greater) at 50Ω.
DISPLAY
Size: 54 x 36 mm.
Type: Backlit monochrome LCD
Display Resolution: 160 x 100 pixels.
Low Battery Indicator: Battery Icon gauge on display with 10 capacity levels.
Backlight: LED.
BATTERY
Non-Rechargeable: LiMnO2 12V, 2.6 Ah.
Capacity: 90 discharges at 360 Joules or 125 discharges at 200 Joules or 150
discharges at 150 Joules or 5 hours ECG monitoring.
Shelf Life: (25°C±15°C) 10 years (5 years storage + 5 years standby); 5 years
standby
(after installation).*
* Capacity may be diminished at operating temperature extremes.
GENERAL
Weight: 3.5 lbs. with battery (1.6 kg)
Size: 8.25" x 6.875" x 2.75" (210 x 175 x 70 mm)
Operating Temperature: 0° to 50°C
Storage Temperature: -30° to 70°C (without battery)
Humidity: Up to 95% or 10° to 95°C (non-condensing)
Altitude: Up to 15,000 feet (-150 to 4570 m)
Shock: Mil Std 810E method 516.4, procedure 1 (40G, 6-9ms pulse, 1/2 sine each
axis)
Vibration: Mil Std 810 method 514.4, category 1
Water resistance: IEC 529 IPX4
Drop Test: Mil Std 810F method 516.5 Procedure IV (1 meter drop onto any edge,
corner, or surface)
ELECTRICAL ISOLATION
Power: Unit operates on internal battery only.
External Electrical Connections: No external devices are attached to the unit.
Risk Current Category: Class II equipment with defibrillator-proof BF type
patient applied parts (as per definition of IEC 60601-1 standard.)
ELECTROMAGNETIC COMPATIBILTY
Radiated Emissions: EN55011; CISPR11 B
ESD: EN61000-4-2; 8KV air 6KV contact
Radiated Susceptibility: EN61000-4-3 (10 V/M (20 v/m EN60601-2-4))
Magnetic Field Emissions: MIL STD RE101 (AAMI DF 24.3.18.1)
Magnetic Field Susceptibility: MIL STD RS101 1 Gauss, 47 Hz-1.8 KHz.
DATA MANAGEMENT
Event Documentation: Internal.
Internal Memory Capacity: 1MB: 250 4-sec ECG samples or 3000 time stamped
events.
Quick Report: Treatment Summary, Event Log, Test Log.
Communication: RS-232 via Infrared (IR) port to PC or printer.
3 year limited manufacturers warranty
PRICE $2,800.00
$2,012.50
90043-2 Heart Logo Carrying Case for AED 10 $191.54
0-02180 Wall Cabinet $350.00
